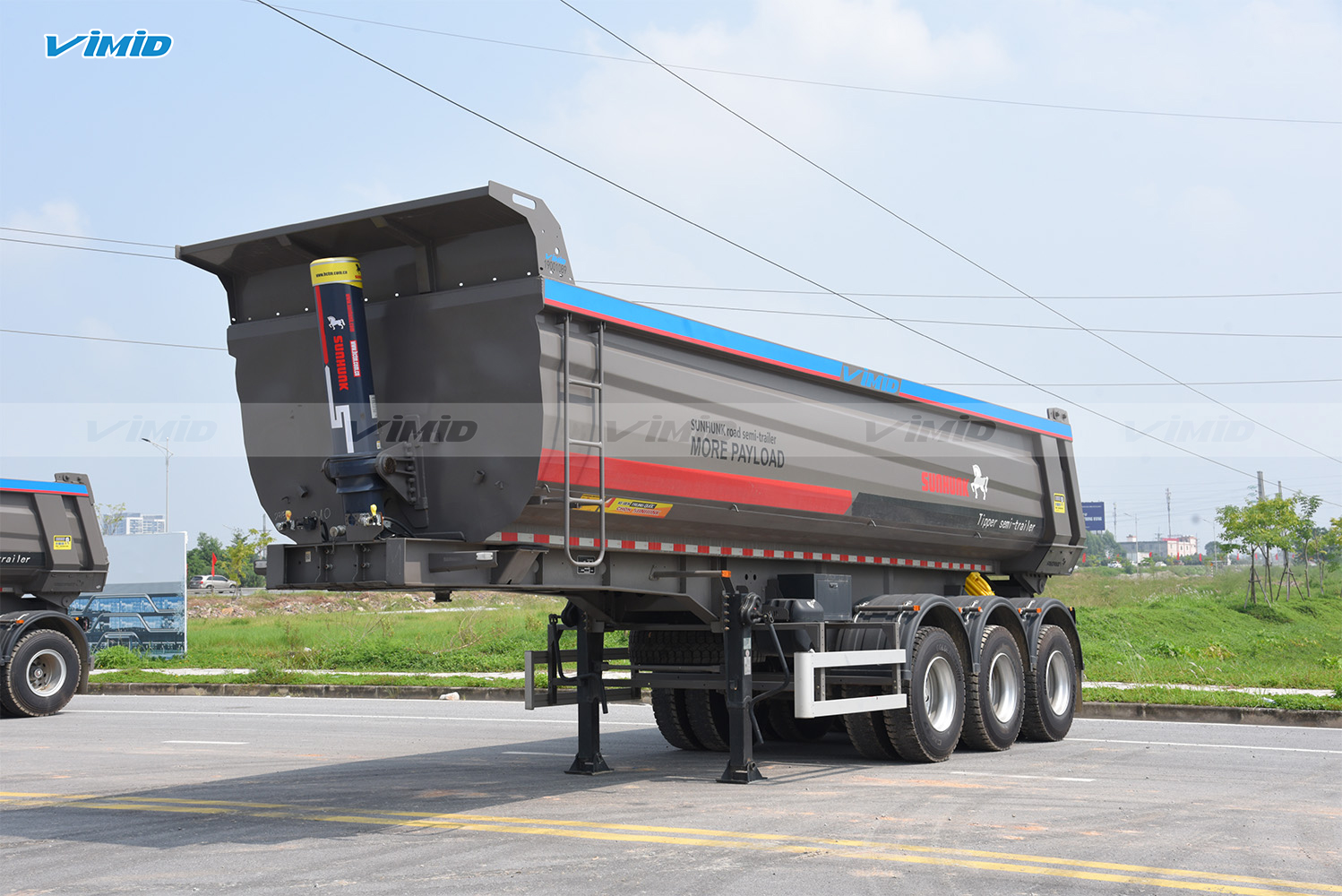

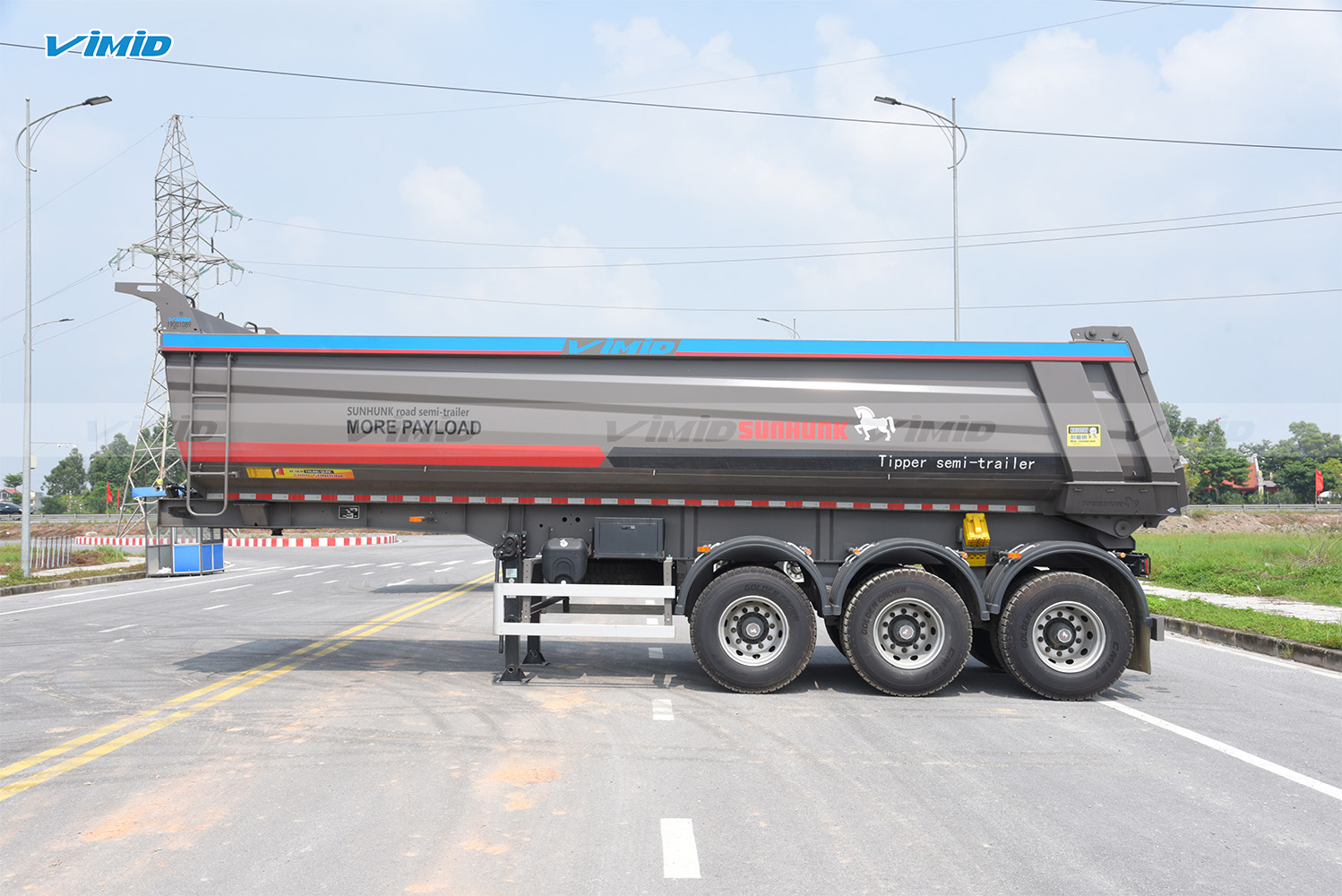

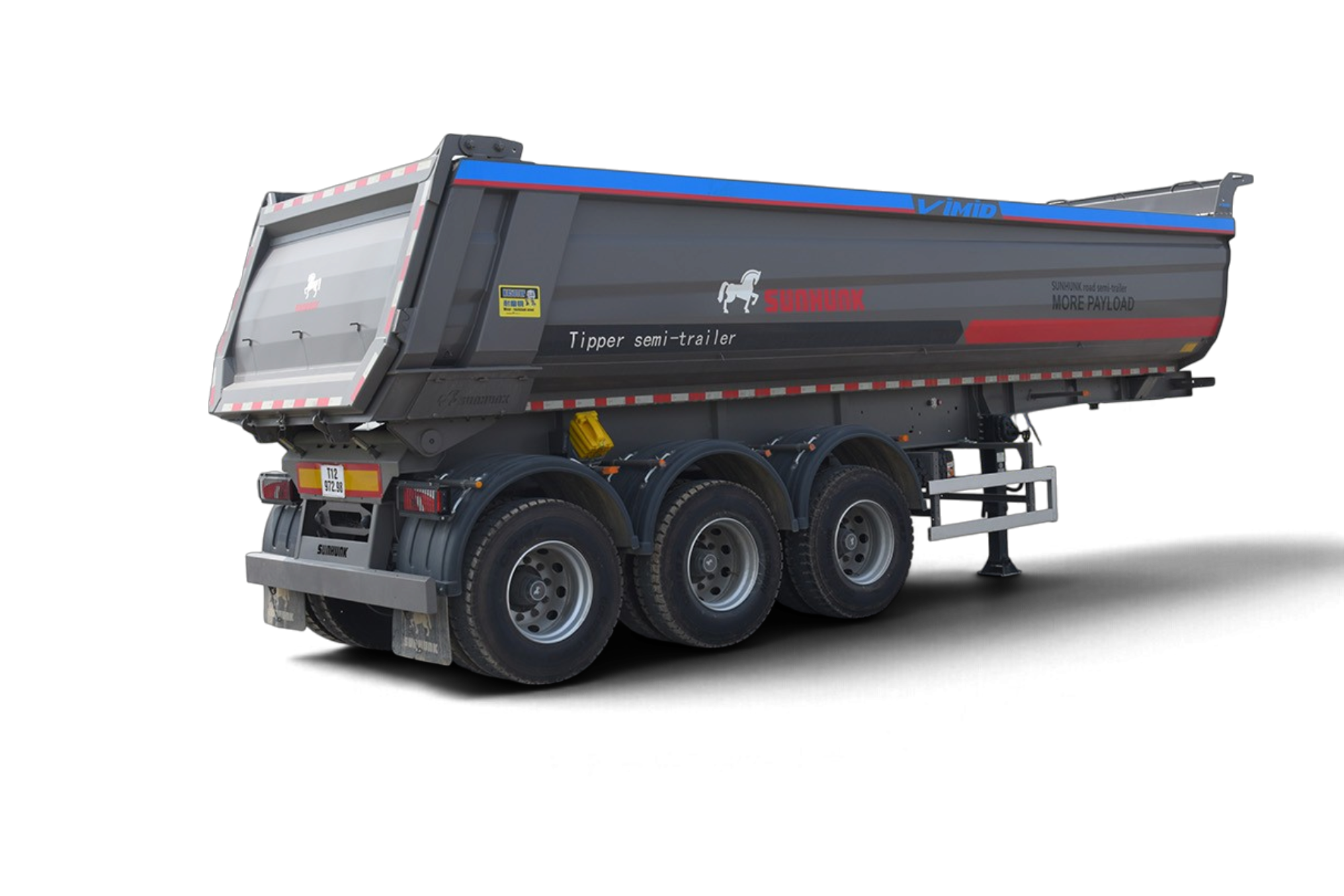

SUNHUNK U-Shape Dump Semi-Trailer – 8.1 Tons (Europe Version)
SUNHUNK U-Shape Dump Semi-Trailer – 8.1 Tons (Europe Version) equipped with 12R22.5 tires is a newly developed product jointly researched and designed by VIMID and SUNHUK. Featuring an attractive exterior, robust structure, and many outstanding improvements, this trailer offers exceptional load-bearing capability and high payload capacity, meeting the demands of transporting heavy materials such as soil, rocks, sand, ore, and large volumes of construction materials.
Price upon request.
Note: This price is a reference price; for the best price, please contact us.
With its spacious cargo body, reinforced frame structure, and impressive carrying capacity, the SUNHUK 8100 is an ideal investment for customers seeking a durable, powerful, and stable dump semi-trailer for long-term operation.
Hydraulic System

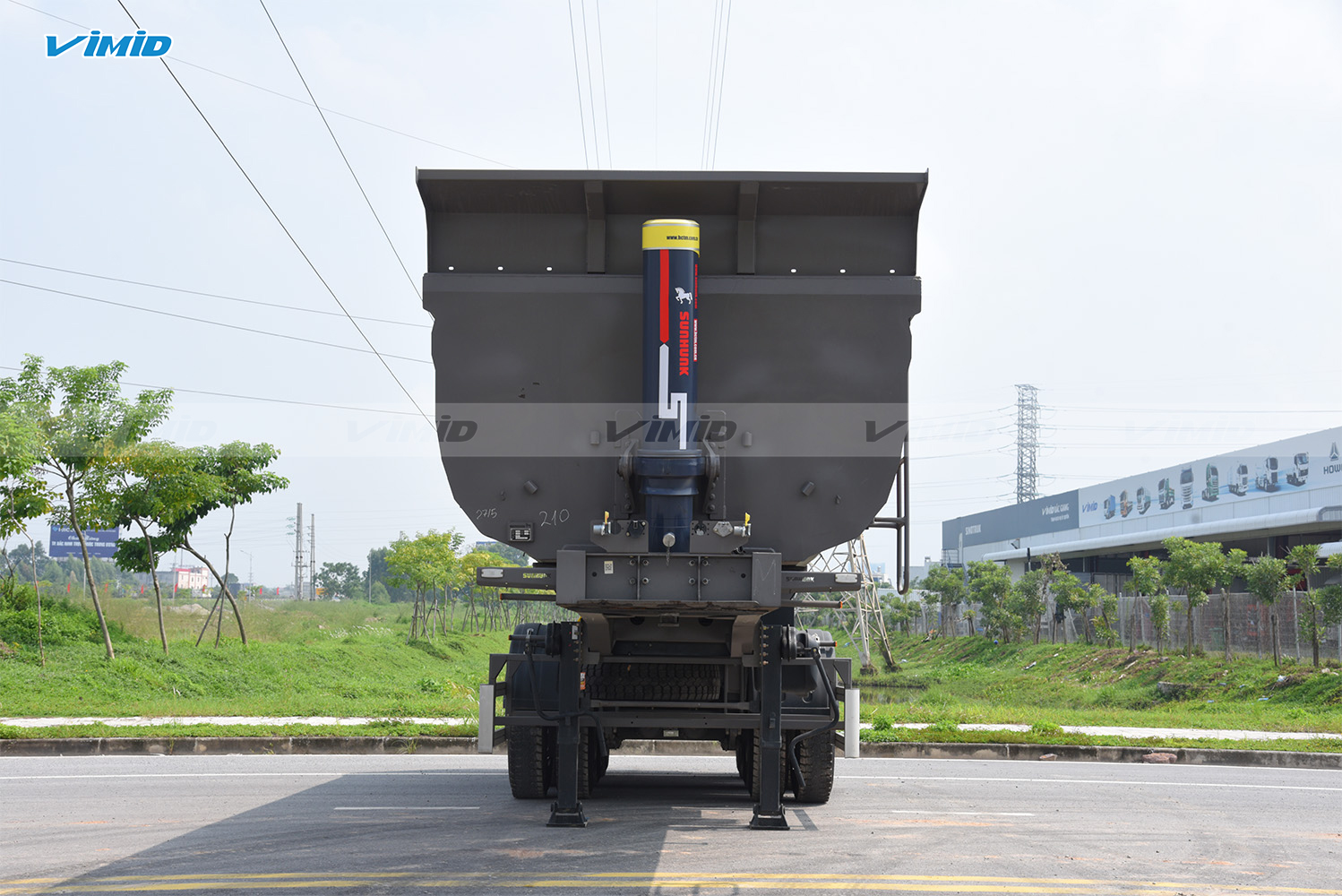

The trailer is equipped with an HCTM 202-5 hydraulic cylinder system, featuring:
- Maximum cylinder diameter up to 202 mm
- 5-stage telescopic cylinder
- Maximum lifting stroke of 6,700 mm
Cargo Body System
Combining SUNHUK’s extensive manufacturing and design experience with VIMID’s deep understanding of the Vietnamese market, both companies developed a specially engineered cargo body structure featuring multiple reinforcement folds. These reinforced ribs significantly improve load-bearing capability.
The enlarged rear body design allows faster and smoother unloading, ensuring safer cargo discharge while reducing the risk of trailer rollover.

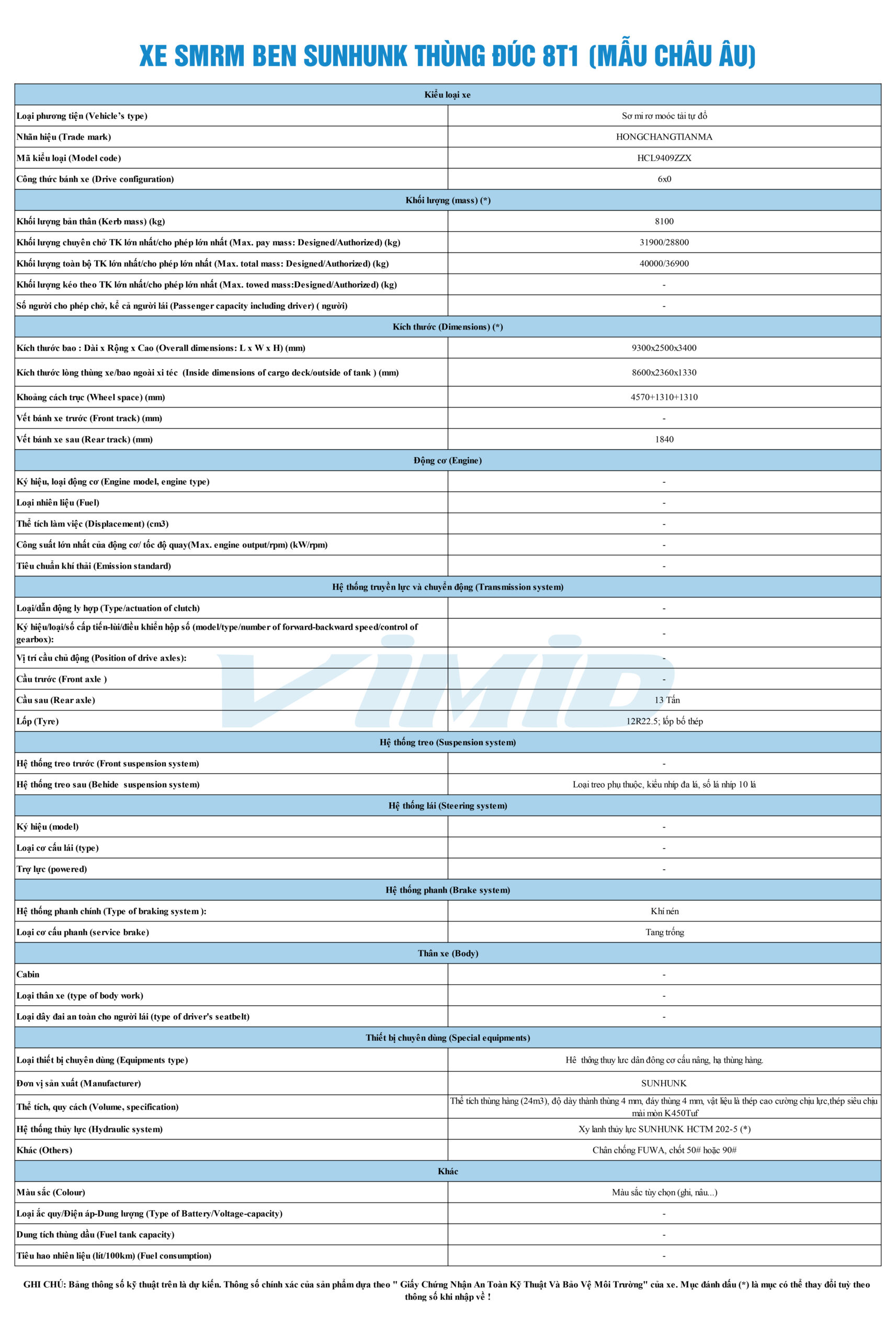

Cargo Body Specifications
- Internal body length: 8,600 mm
- Width: 2,360 mm
- Height: 1,330 mm
The U-shaped cargo body structure features:
- 3 mm side walls
- 3 mm floor plate
- High-strength NM450Tuf steel
This design increases body width, improves structural rigidity, and effectively prevents body deformation. Cargo body volume reaches up to 24 m³.
Structural Design
- G-shaped crossbeam structure with excellent anti-torsion capability
- Standard high-strength steel plates and wear-resistant plates, extending service life up to twice as long
Tipping Shaft System
- 127 mm tipping shaft diameter
- Full-length shaft design for more stable lifting and lowering operations
- Wide-body assembled tipping shaft with multiple large bolts for easier maintenance and enhanced long-term durability
Rear Door Design
The newly designed rear gate features a curved profile that disperses concentrated stress forces, reducing deformation and increasing service life.
Suspension System and Axles
Suspension System
- Equipped with 10 leaf springs
- Each spring measures 90 x 13 mm
Axles and Braking
- Equipped with ABS anti-lock braking system
- Uses SUNHUK 13-ton axles with excellent load-bearing capability
Side Protection System
- Lightweight and premium aluminum alloy side guards on both sides
- Additional toolbox and water tank for greater operational convenience
Landing Gear and Kingpin System
The trailer uses a 90 kingpin made from special high-strength materials, ensuring superior load-bearing and towing capability.
The landing gear system uses FUWA landing legs, a well-known brand recognized for quality and durability:
- Load capacity: 80 tons
- Widely used in the market
- Single-side crank handle for faster operation
- Easily accessible spare parts for maintenance and replacement
Others
- Equipped with 12R22.5 Double Coin tires.
