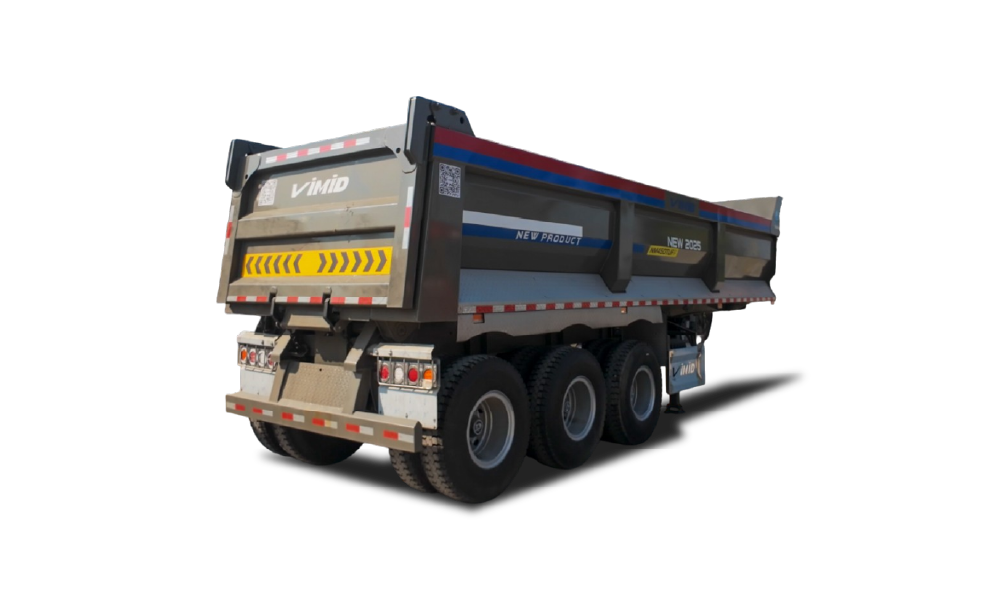

FUSHI U-Shape Dump Semi-Trailer – 8.7 Tons

The FUSHI U-Shape Dump Semi-Trailer 8700 equipped with 12.00R20 tires is a trailer specifically developed for transporting heavy materials such as soil, rocks, sand, ore, and large quantities of construction materials.

Its wide dump box design, robust frame structure, and impressive load-carrying capacity make the FUSHI 8700 a worthwhile investment for customers looking for a durable, powerful, and stable dump semi-trailer for long-term operation.

EXTERIOR

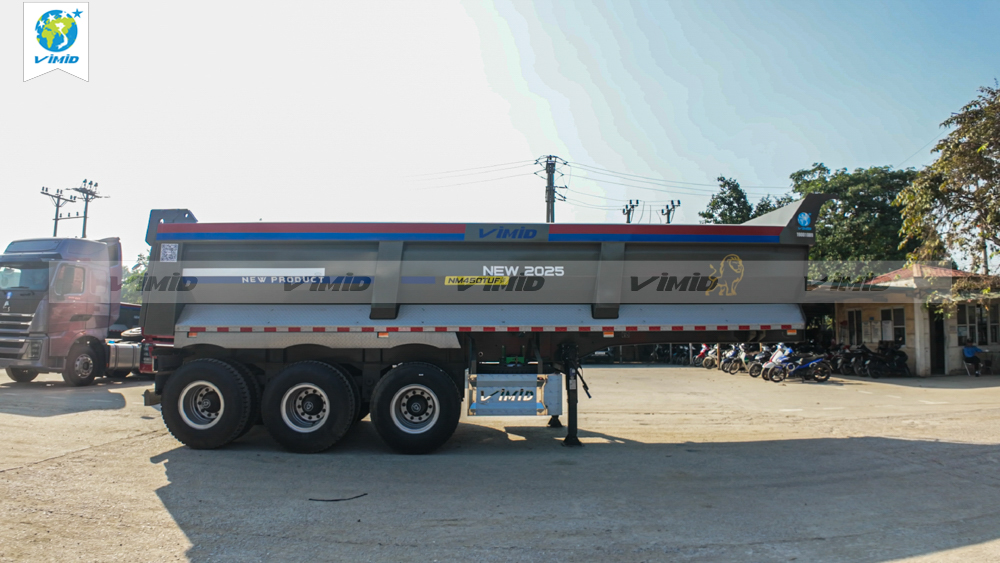

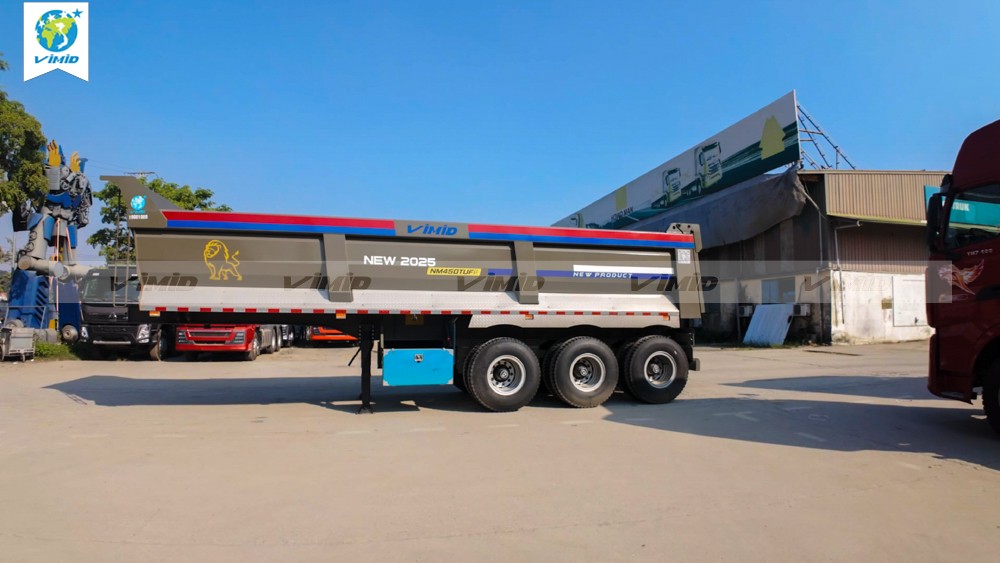

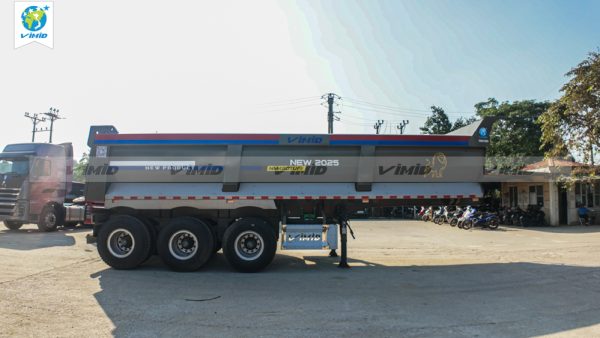

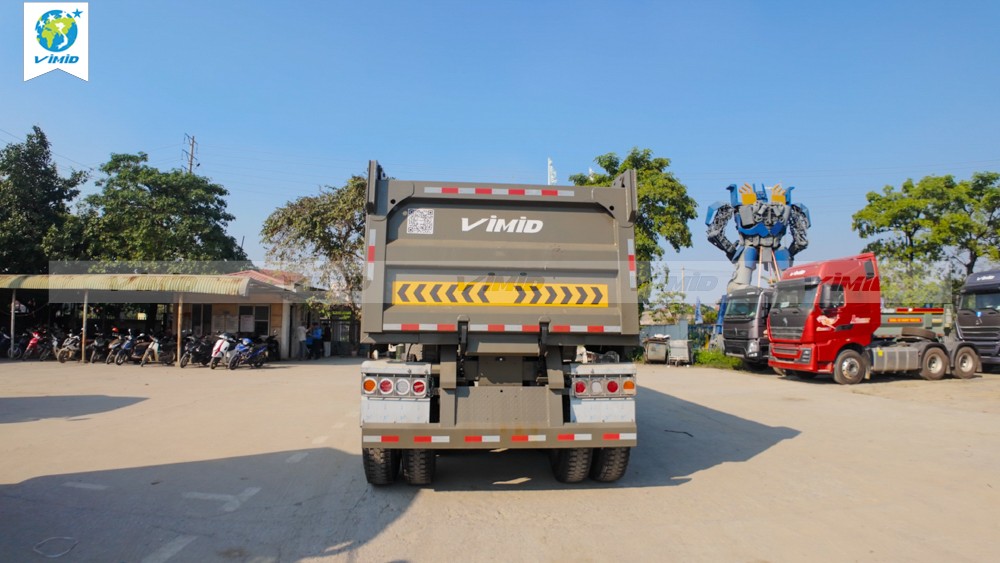

The FUSHI dump semi-trailer makes a strong first impression with its one-piece U-shape dump box design, creating a solid and durable appearance.

The entire dump box is made from high-strength NM450 steel, providing outstanding impact resistance and minimizing deformation when transporting heavy materials such as soil, rocks, and aggregates under demanding construction site conditions.

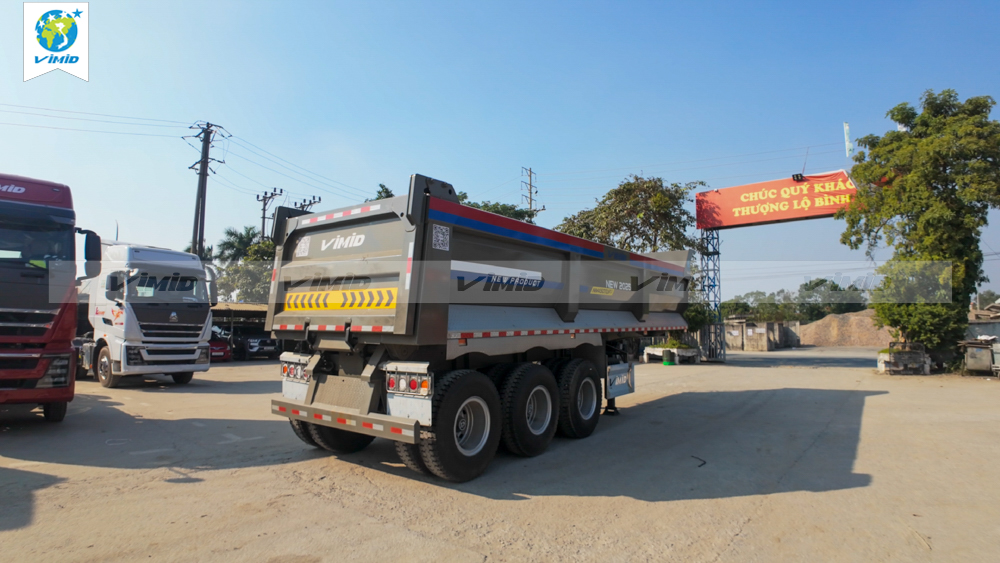

U-SHAPE DUMP BOX

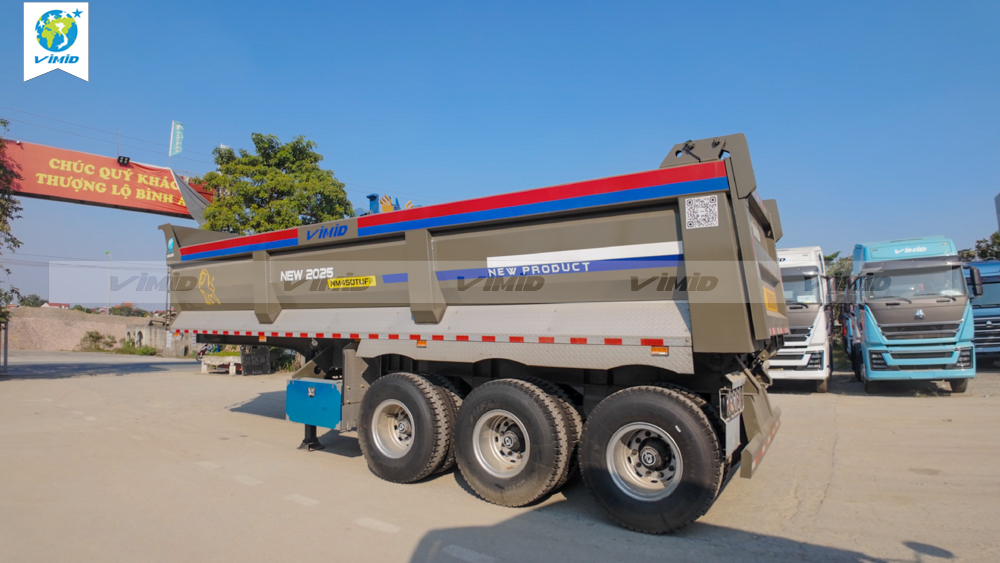

The FUSHI dump box features a U-shape design that allows materials to slide out more quickly during unloading, making it especially suitable for transporting soil, rocks, sand, and construction materials.

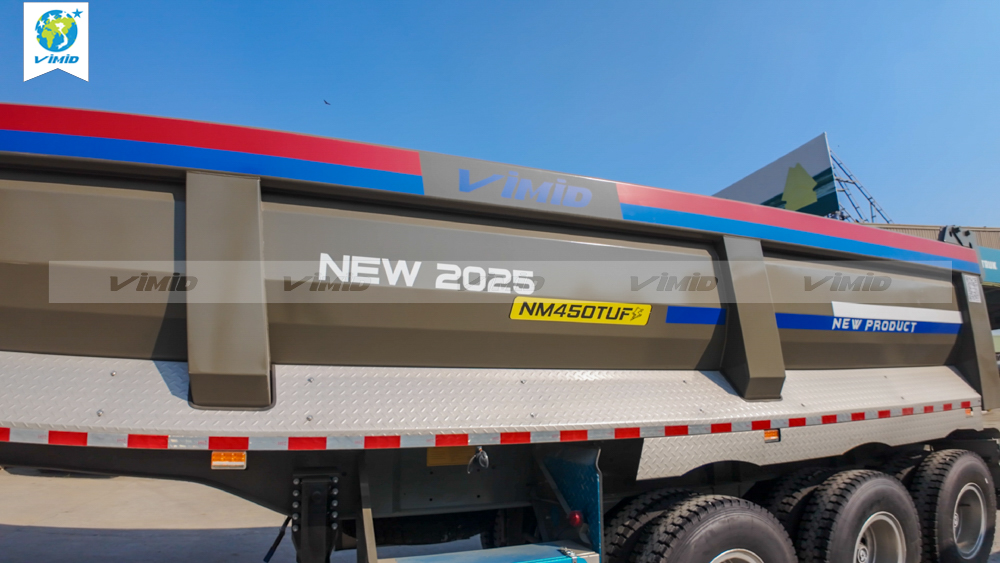

Both the side walls and floor of the dump box are made from 4 mm thick NM450 wear-resistant steel, increasing durability and extending service life compared to conventional steel.

With an internal box/external tank dimension of 8530 × 2320 / 1500 × 1300 mm, the wide and low-profile box design lowers the center of gravity, improving stability and reducing vibration during transport.

HYDRAULIC SYSTEM

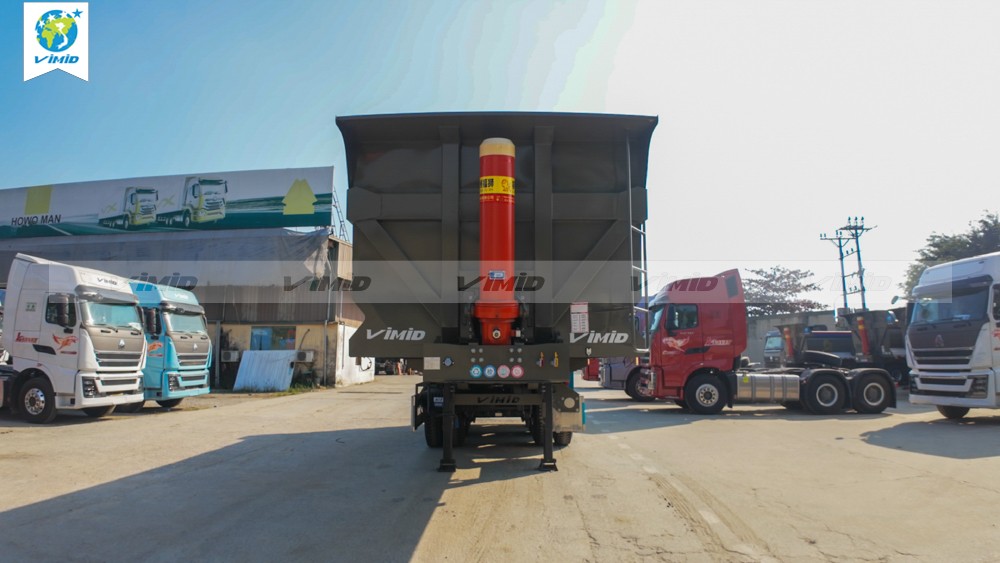

The FUSHI dump semi-trailer is equipped with a FUSHI 202-5 hydraulic cylinder, designed to work in sync with the chassis frame and dump body, ensuring smooth, stable, and safe lifting and lowering operations.

The hydraulic cylinder uses a solid steel structure with a chrome-coated surface for oxidation resistance, improving rust protection and maintaining durability in dusty, muddy, or humid working conditions.

OTHERS

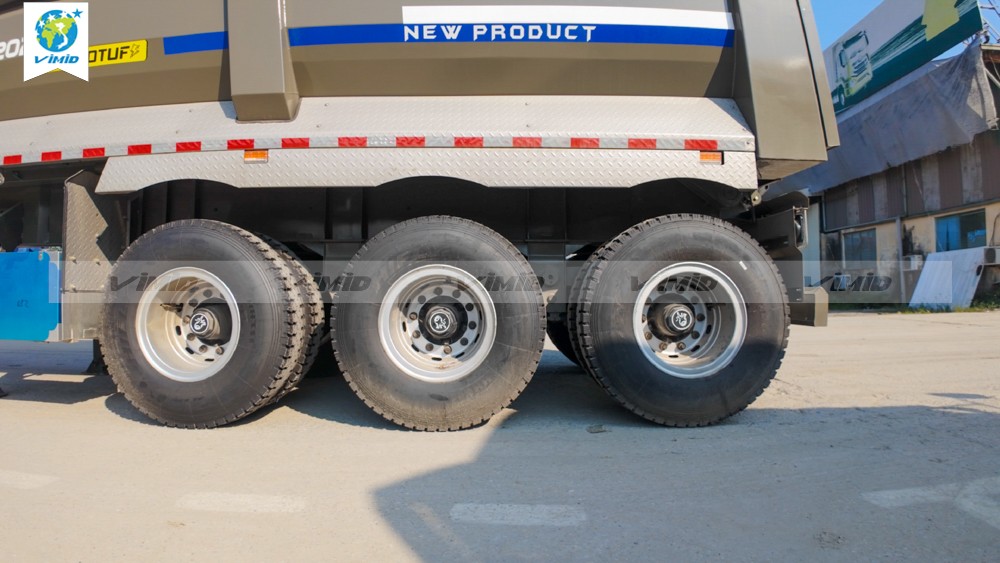

Axles: Equipped with 16-ton load-capacity axles, suitable for transporting heavy materials at mines and construction sites.

Suspension: Large 9-leaf spring packs with high load capacity help absorb shocks effectively on rough terrain.

Braking System: Equipped with an air brake system and drum brake mechanism, ensuring high safety when carrying heavy loads or descending slopes.

Tires: 12.00R20 steel radial tires provide stable road grip, strong load capacity, and are well suited for construction site operation.

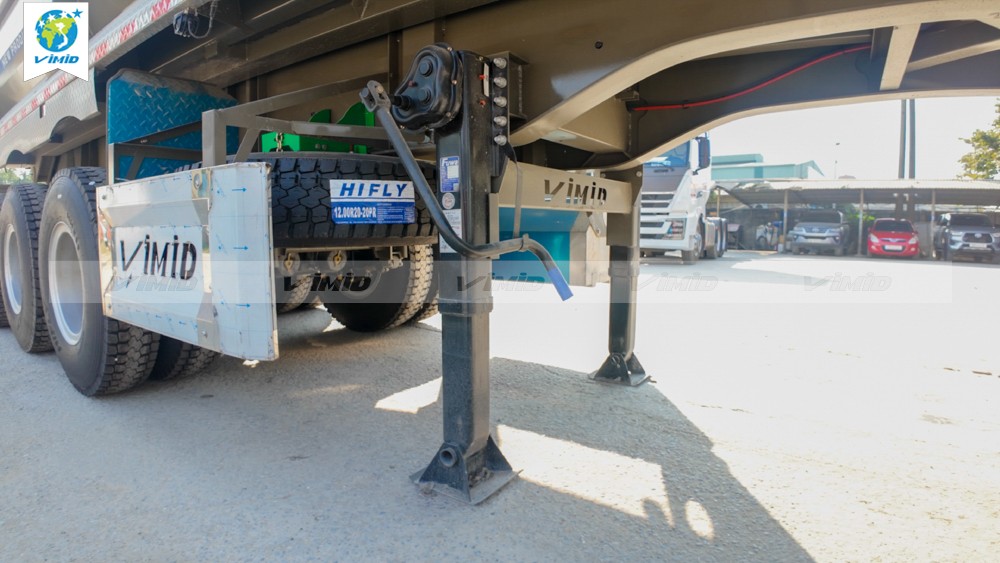

Drawbar eye, pins, and spring bushings: All are made from high-strength steel with excellent wear resistance, ensuring long-lasting durability under continuous heavy-duty operation.
